PCC85Sensibly equivalent¶ to:See also:
|
|
|

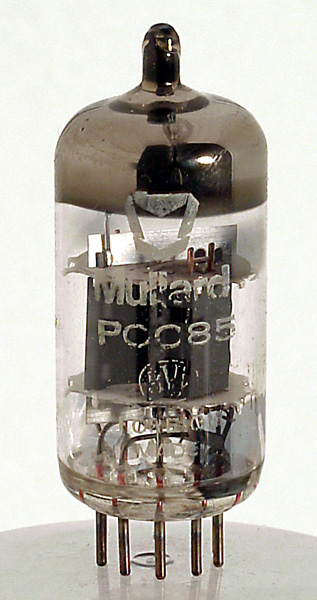

The PCC85 is a VHF double triode. These were used in Band III television tuners as RF amplifiers and oscillators.The construction is of two pressed metal box anodes separated by space and an electrostatic screen. Within the small box anode cavity is a flat cathode and close spaced grid.The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 47 mm tall.References: Data-sheet & 1040. Type PCC85 was first introduced in 1953. See also 1953 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |  a(2) | g1(2) | k(2) | h | h | a(1) | g1(1) | k(1) | s |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 9.5 | 0.3 | 170 | -1.5 | 10 | 8,000 | 6.2 |
|
