9AQ8

Sensibly equivalent to:
PCC85
See also:
Valves and their Habits

Extras ▼



The 9AQ8 is a VHF double triode. These were used in Band III television tuners as RF amplifiers and oscillators.

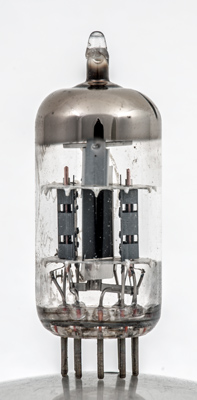

The construction is of two pressed metal box anodes separated by space and an electrostatic screen. Within the small box anode cavity is a flat cathode and close spaced grid.

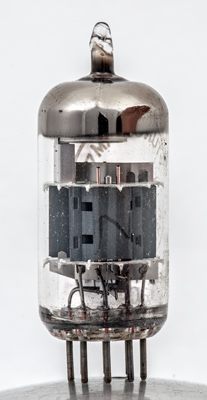

Face view of one triode with the screen behind.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Datasheet & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
9.5
0.3
170
-1.5
10
8,000
6.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 01, 2018.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:300ma pins:9 pin:1.a(2) pin:2.g1(2) pin:3.k(2) pin:4.h pin:5.h pin:6.a(1) pin:7.g1(1) pin:8.k(1) pin:9.s
