2050A

Sensibly equivalent to:
EN32 ME1501

Extras ▼

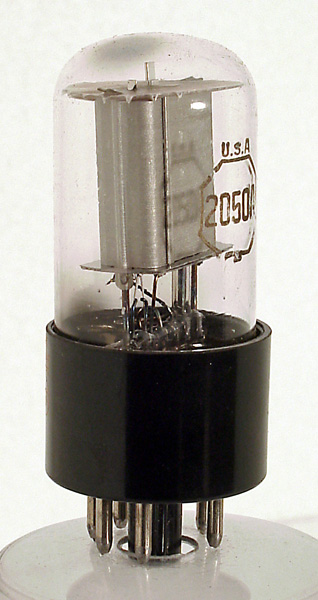

This tetrode thyratron obscures the linear electrode configuration within the box anode. At 650 Volts and a peak current of 2 Amps this device produces powerful current pulses. The valve has a voltage drop when conducting of 10 Volts and a control ratio of 270.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 62 mm tall.
See also 2050
References: Data-sheet & 1040. Type 2050A was first introduced in 1948. See also 1948 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
h
a
nc
g1
g2
h
k



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
mAa
6.3
0.95
650
2,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
