EZ80

Sensibly equivalent to:
6V4 CV1535
See also:
11 Watt Ultra-Linear Amplifier - Push-Pull EL91 Amplifier

Extras ▼

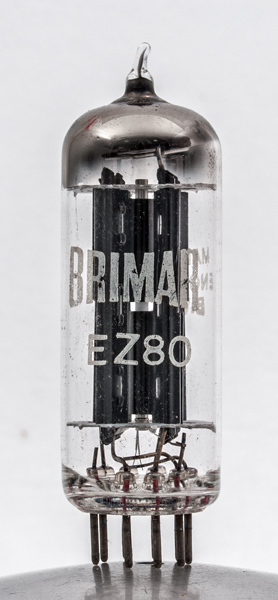

The EZ80 full wave rectifier was found in many broadcast receivers and domestic audio equipment and this exhibit was made by Brimar.
Suited to the task, at 90 mA maximum current and with a required series resistance of 300 ohms to reduce the initial surge in charging the maximum 50 µF reservoir capacitor, each anode would conduct in turn when connected to either end of a grounded centre tapped mains transformer.

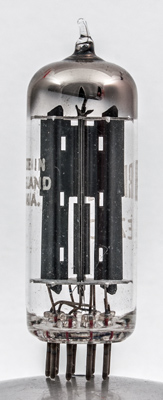

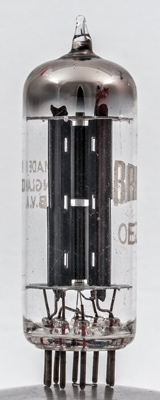

The anode pressings are identical but are mounted at right angles to one another on the common cathode and one is upside down.
Made in England
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 59 mm tall.
References: Datasheet & 1040. Type EZ80 was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
ic
k
h
h
ic
a(1)
ic
ic



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
350
90
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 25, 2016.
