VT-105

Sensibly equivalent to:
6SC7 CV1969

Extras ▼

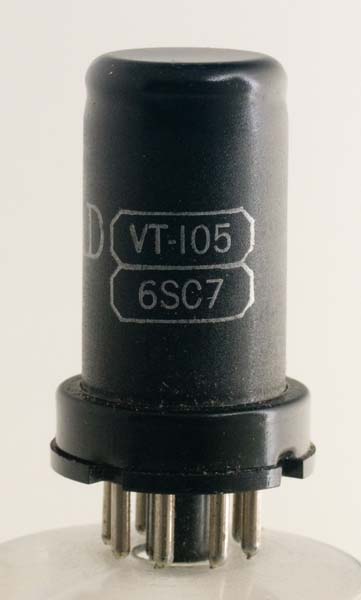

The American service code valve VT-105 is a metal enveloped double triode. The commercial type, also marked on the case is 6SC7. These double triodes have been used in guitar amplifiers and the ECC83 is used for upgrades although the 6SL7 was the first successor valve in the early 1940's.
We also have the 12SC7 that differs only in heater rating.

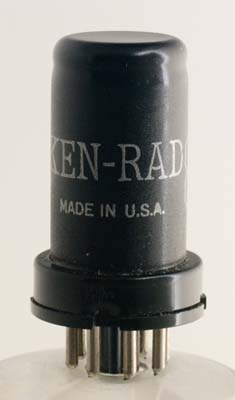

The Ken-Rad name is also on the cardboard box. The box also has the Bendix Corporation on it.

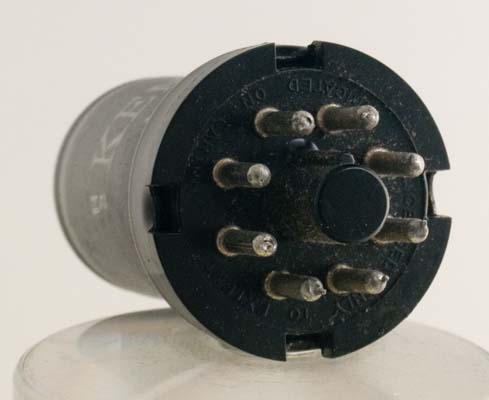

The IO base is 32 mm in diameter. The skirt is pinched to hold the plastic base in place.
The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 50 mm tall.
References: Data-sheet, 1043, 3002 & 1040. Type VT-105 was first introduced in 1938.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
a(2)
g1(2)
g1(1)
a(1)
k
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2
2.0
53,000
1.325
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 15, 2019.
