6SC7

Sensibly equivalent to:
CV1969 VT-105

Extras ▼



The 6SC7 is a metal enveloped double triode, these double triodes have been used in guitar amplifiers and the ECC83 is used for upgrades although the 6SL7 was the first successor valve in the early 1940's.
This example from General Electric looks to be new and unused with perfect matt balck paint.
We also have the 12SC7 that differs only in heater rating.

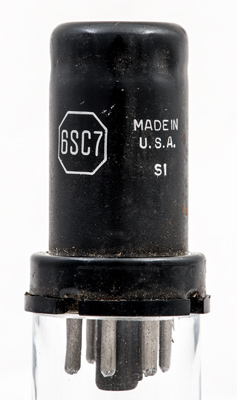

Country of origin.

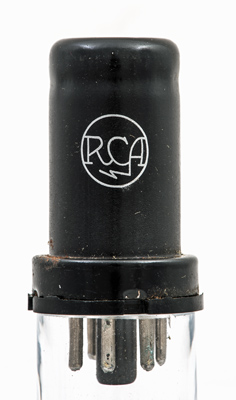

The RCA logo.

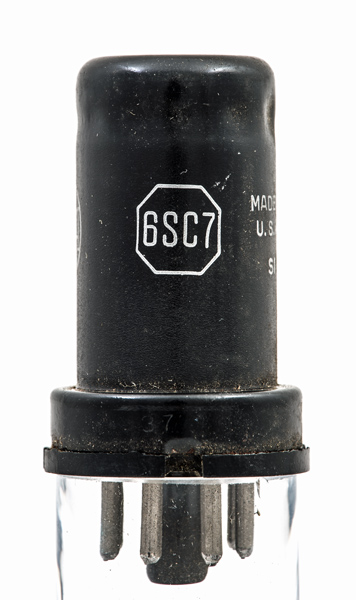

The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 51 mm tall.
References: Data-sheet, 1043 & 1040. Type 6SC7 was first introduced in 1938. See also 1938 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
a(2)
g1(2)
g1(1)
a(1)
k
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2
2.0
53,000
1.325
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 07, 2021.
