354V

Sensibly equivalent to:
41MTL AC/HL AR17 CV399 CV1037 D4 HL4 NR31 NR52 VR37
See also:
CV1173 short entry

Extras ▼



The 354V from Mullard is a detector and general purpose audio valve. The design originally operated with a maximum anode voltage of 200 and was improved in 1930 and again in 1935 with the final design having a 250 Volt maximum anode rating. The mutual conductance also increased over the development cycles from 2.4 to 3.4 mA/V.

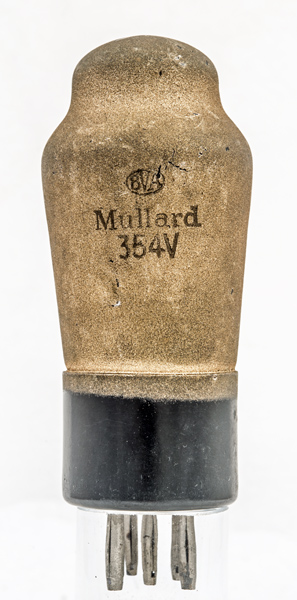

This 354V from Mullard has the classic shouldered envelope design and is screened with an external metalising paint. Where the paint has worn off the glass underneath is opaque.
The original 354V triode dates from 1929 and in 1935 the heater current requirement was reduced to 0.65 Amp. This example has a 0.65 Amp heater and thus can be dated to the mid 1930s or later.

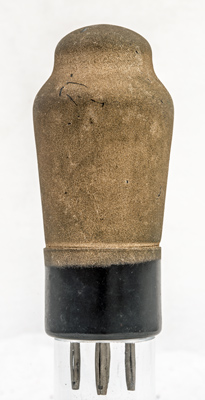

The printing on top of the metal paint is clear to read and durable.
The classic envelope is 42 mm in diameter and, excluding the B5 base pins, is 86 mm tall.
References: Datasheet & 1043 Type 354V was first introduced in 1929.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
0.65
250
-4.5
6.5
11,500
3.5
PDF scanned from an original document held by the museum
