MH4K

Sensibly equivalent^¶ to:

41MTL AC/HL AR17 CV399 CV1037 D4 HL4 MH4 NR31 VR37

See also:

Catkin Valves - The Metal Valve - Osram Catkin Advert

Extras ▼

M-OV G8LSD Valve Collection Other MH4K exhibits

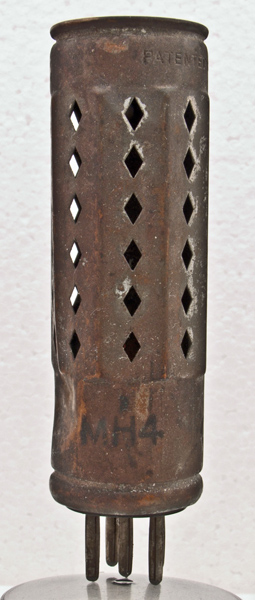

The catkin featured here has an external metal shield and is a brother to MH4 but this exhibit has a Marconi label.

Other MH4's in the collection are without this screening feature. The MH4 was designated as being for detector service in radio receivers. Catkin versions of the 1929 MH4 were introduced in 1933 and 1934.

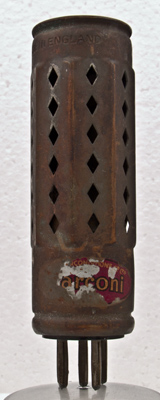

The Marconi label testifies to the harsh treatment this valve has undergone. The wording at the top is Patented Made in England.

The outer metal shroud is 32 mm in diameter, and excluding the B5 base pins is 97 mm tall.

References: Data-sheet, ¹⁰⁰⁵, ¹⁰⁴³, ³⁰⁰² & ¹⁰⁴⁰. Type MH4K was first introduced in 1933. See also 1933 adverts.

Pin Connections

B5	1	2	3	4	5
	a	g1	h	h	k

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	4.0	1.0	250	-4	5.0	11,100	3.6

Thanks to Frank Philipse for supplying the above PDF datasheet.
