ECF80

Sensibly equivalent to:
6BL8 6C16 CV5215
See also:
Valves and their Habits - Valves for Bands III, IV & V - ECF80 and ECF82

Extras ▼



The ECF80 was designed as a mixer for operation up to 220 MHz. As 1950s television receivers tended to use the PCFnn 300 mA valves.
The valve is marked ECF80 and CV5215 showing that the CV specification is for the commercial device.
The triode is the oscillator and has to produce 5 V pk-pk signal. The screened pentode is the mixer. The valve has two cathodes so two independent valves are sited in the one envelope.

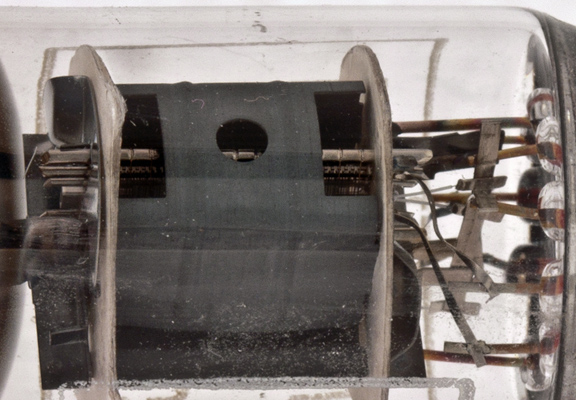

Unlike the Mullard ECF80 the anode of this exhibit is cut away at the ends and the three wire grids of the pentode can be clearly seen.
The open end of the pentode with the screen behind.

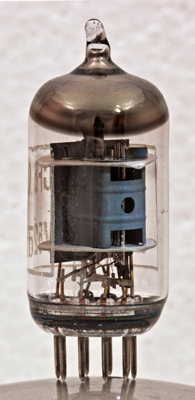

The thin glass tube envelope is 22 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
References: Data-sheet & 1040 Type ECF80 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,s,g3
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.43
250
180
-5.8
5.7
1.4
1.5M
5.5



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
100
-2
14
4K
5
Thanks to Frank Philipse for supplying the above PDF datasheet.
