6N7

Sensibly equivalent to:
CV1957 VT-96
See also:
Quiescent Push-Pull

Extras ▼



The 6N7 is designed to operate in push-pull Class B2 with zero grid bias or quiescent push-pull. The anode to anode load is given as 8,000 Ohm. The 6N7 is capable of 10 W audio output, and a pair operating in parallel push-pull will produce 20 Watts. A single valve operating in Class A is effective as a driver for another 6N7 as the output stage.
Although made in the USA this valve was exported to the UK where Brimar were the distributor.

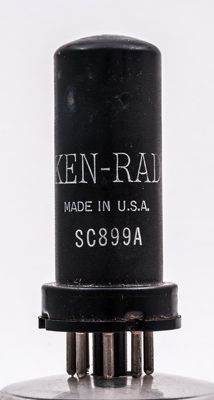

Made in USa with a serial number of SC899A.

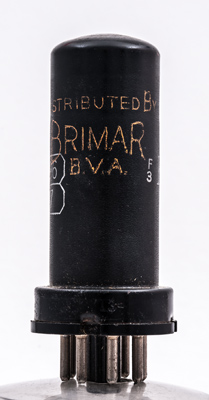

Distributed by Brimar in the Uk, a BVA member.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins is 67 mm tall.
References: Datasheet, 3002 & 1040. Type 6N7 was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
g1(2)
g1(1)
a(1)
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.8
300
0
35.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2017.
shape:classic construction:pinch type:double.triode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a(2) pin:4.g1(2) pin:5.g1(1) pin:6.a(1) pin:7.h pin:8.k
