VT-96

Sensibly equivalent to:
6N7
See also:
Quiescent Push-Pull

Extras ▼



The VT-96 is the US Government procurement code for the 6N7 quiescent push-pull double triode audio power valve capable of 10 W output.

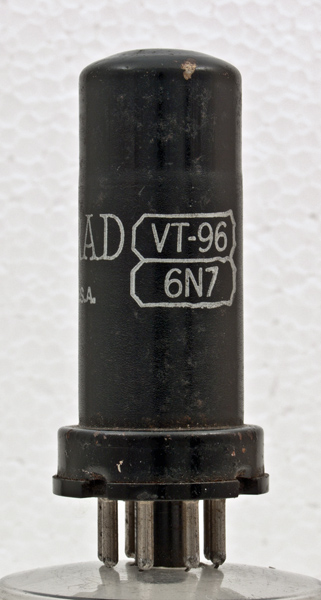

The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins is 67 mm tall.
References: Datasheet & 1040. Type VT-96 was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
g1(2)
g1(1)
a(1)
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.8
300
0
35.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 28, 2013.
shape:classic construction:pinch type:double.triode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a(2) pin:4.g1(2) pin:5.g1(1) pin:6.a(1) pin:7.h pin:8.k
