6C8G

Sensibly equivalent to:
CV1896 VT-163

Extras ▼



The 6C8G is a double triode. Each section has a separate cathode and the first valve has its grid taken to the top cap. This will confer greater isolation from the anode circuit than for valve two.
Intended for use in radio-gram type domestic equipment, the 6C8G provided audio amplification and phase splitter in one envelope. The final push-pull output stage was thus driven by this single valve.

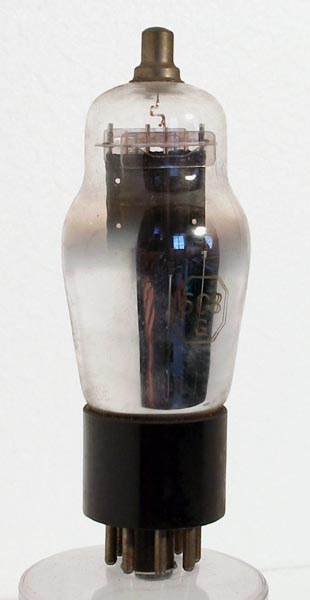

The classic envelope is 36 mm in diameter and, excluding the IO base pins, is 96 mm tall.
References: Data-sheet & 3002. Type 6C8G was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a(1)
k(1)
g1(2)
a(2)
h
k(2)
g1(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
0
3.2
22,500
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 16, 2013.
