CV1896

Sensibly equivalent to:
6C8G

Extras ▼



The CV1896 is a double triode based on the commercial 6C8G. The intended application is as an audio voltage amplifier followed by a phase splitter in sets or 'gram amplifiers using push-pull output. The audio input would normally be taken to the top cap, being the grid of the 'first' triode. This will confer greater isolation from the anode circuit than for valve two.
Haltron were a wholesaler of valves for export from the UK.

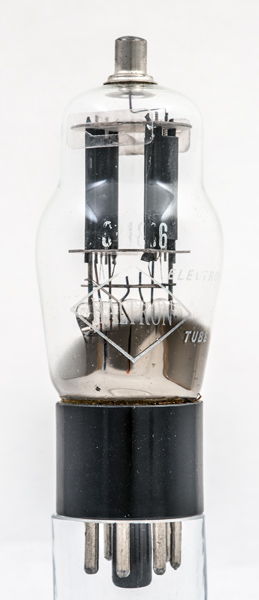

Triode one seen face on.

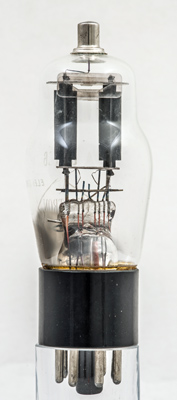

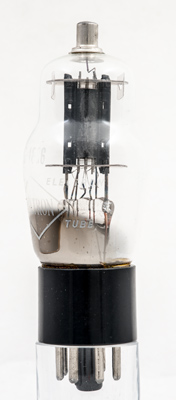

The twin triodes.
The classic envelope is 38 mm in diameter and, excluding the IO base pins, is 93 mm tall.
References: Data-sheet & 3002. Type CV1896 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a(1)
k(1)
g1(2)
a(2)
h
k(2)
g1(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
0
3.2
22,500
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 21, 2021.
