PCL801

Sensibly equivalent to:
13GC8 30PL1 LN319
See also:
Valves and their Habits

Extras ▼

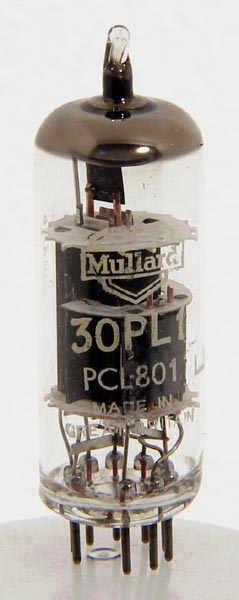

The 30PL1/PCL801 output pentode is for audio output with an anode load of 6,000 Ohms or for use as a frame timebase stage.
The triode is the first audio amplifier to act as a feed for the output stage.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 59 mm tall.
References: Data-sheet & 1040. Type PCL801 was first introduced in 1959. See also 1959 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k(t)
h
h
a
k,g3
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
D
13
0.3
170
180
-9.6
28
6.5
6.5
2.0W
7%



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
200
-7.7
10.0
5,300
3.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
