PCF801

Sensibly equivalent to:
8GJ7
See also:
Valves and their Habits - Two New Mullard Television Valves - New TV Valves and Circuits

Extras ▼

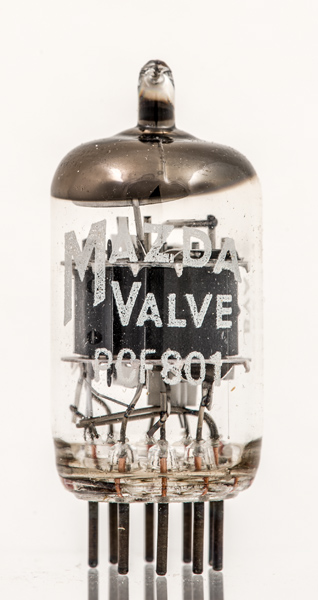

The PCF801 is a television mixer oscillator.

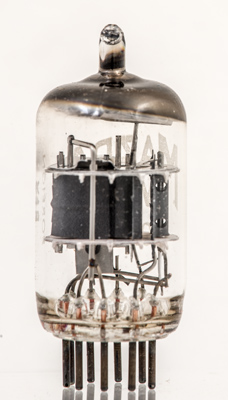

The small triode on the right has the grid at right angles to the pentode grids. The screen grid connection is made at the top with a support seen in the foreground.
This valve is an import but Mazda are part of the BVA.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 41 mm tall.
References: Data-sheet & 1040. Type PCF801 was first introduced in 1963. See also 1963 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k,g3,s
g1(t)
k,g3,s
h
h
a
g2
a(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
8.5
0.3
175
120
-1.4
10
3.0
0.35M
5.0



Absolute Maximum Operating Conditions
Triode
Va
mAa
60
12
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 20, 2024.
