KT66

Sensibly equivalent to:
6L6G CV1075 EL37 PP60 VT75
See also:
Brimar 25P1 Amplifier

Extras ▼

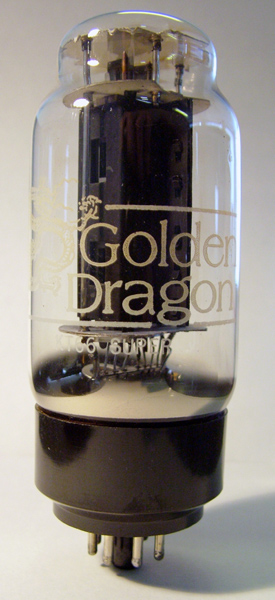

The KT66 is a very well known audio output beam tetrode valve. This exhibit is of Chinese origin and has the Golden Dragon branding. The later GEC production of the KT88 was branded Gold Lion.
The KT66 was essentially a 6L6 redesigned with a larger cathode and a shorter, fatter anode. The KT66 had less rapid acceleration, longer electron paths, and almost no kink. It was ace for audio hi-fi but the electrons took longer to reach the anode and were more open to influence from magnetic, etc, fields on the way. Moreover, under HF conditions the electron stream was not perfectly in phase with the grid signal and this resulted in a loss of output power if used for RF applications.
The figures given are for single ended use, but a pair run in ultra linear AB2 push pull will deliver 50 Watts with 2% distortion. It is not uncommon to find these valves used in parallel push pull. Here each single valve of the push pull pair is replaced with two valves connected in parallel. A 100 W amplifier results.

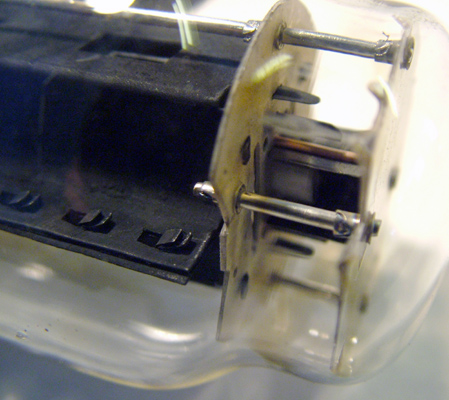

The anode. The plates are stitched together and carbonised on the outer surface to make the anode a more efficient radiator. Thanks to Simon Balderson for sending these images and details.
The shape of the envelope is a mixture of the classic shape and the wide tube.
The classic envelope is 50 mm in diameter and, excluding the IO base pins, is 116 mm tall.
References: Datasheet & 1040 Type KT66 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k,bp



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
1.27
250
250
-15
85
6.3
22.5k
6.3
7.25
9%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 07, 2012.
