CV2984

Sensibly equivalent to:
6080WA 6080WB 6080 CV5008 ECC230
See also:
Series Pass Valves - Mullard 6080 Advert

Extras ▼



The CV2984 is identical to the commercial 6080 series pass valve. The CV or common valve designation being applied to valve types selected for use by the UK government for both civil and military applications.
This double triode features anodes split into two flat ended 'U' shaped channels either side of the flat cathode/grid assemblies.
For full text see 6080.

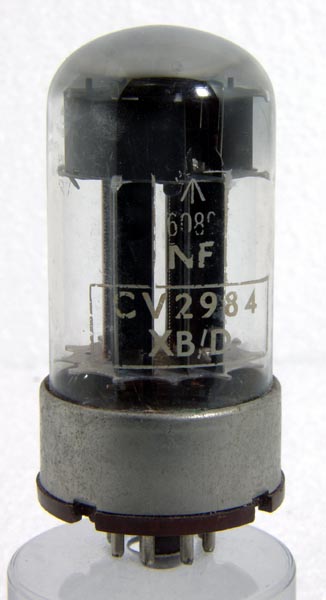

The wide glass tube envelope is 36 mm in diameter, and excluding the IO base pins, is 84 mm tall.
References: Data-sheet, private communication, 3002 & 1040. Type CV2984 was first introduced in 1951. See also 1951 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(1)
a(1)
k(1)
g1(2)
a(2)
k(2)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
Pdiss
ra
gm
μ
6.3
2.5
135
125
13W
285
7.0
2-2.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
