B729

Sensibly equivalent to:
6/30L2 6GA8 ECC804
See also:
Valves and their Habits

Extras ▼

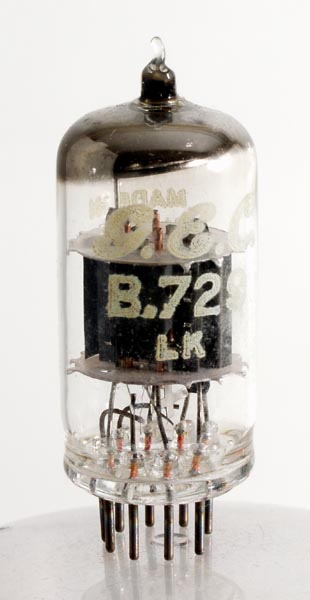

The B729 is a pair of separate amplifier triodes within the same envelope. The two sections are separated by a metal screen.
The B729 was developed for domestic television receivers and the heater has controlled conditions such that it can be used for parallel operation on a constant 6.3 Volt supply or within a 300 mA series heater chain.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 47 mm tall.
References: Datasheet & 1040. Type B729 was first introduced in 1958.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
200
-7.9
10.0
5.3k
3.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 14, 2013.
