PCL83Sensibly equivalent¶ to:See also:
|
|
|

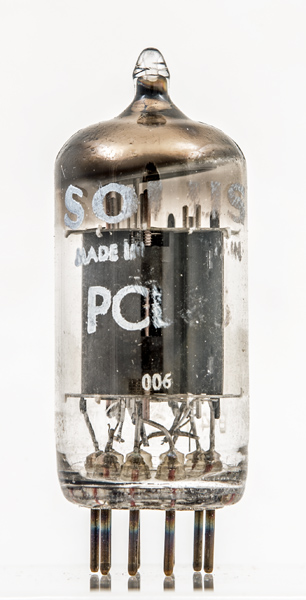

The PCL83 is a television audio triode output pentode from the era of VHF television in the 1950s. It produces enough output power for an average domestic environment but was originally designed for frame timebase and frame output.This exhibit was rebranded by the retailer Solus.Through the holes in the end wall of the pentode can be seen the notched fixings of the suppressor grid winding. The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 48 mm tall.References: Data-sheet & 1040. Type PCL83 was first introduced in 1954. See also 1954 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | a(t) | g1(t) | k(t) | h | h | a | k,g3 | g2 | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pdiss | Pout |
| 12.6 | 0.3 | 170 | 170 | -9.5 | 30 | 5 | 53k | 5.5 | 5.4W | 2.2W |
|
Absolute Maximum Operating Conditions¶
| Va | Vg | mAa | ra | gm |
| 250 | -8.5 | 10.5 | 7700 | 2.2 |
|
Updated July 21, 2021.
|
|
