CV1932Sensibly equivalent¶ to:See also:
|
|
|

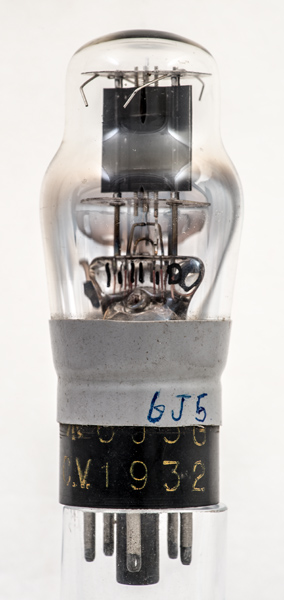

The CV1932 is a single 6J5G triode housed within a shouldered glass envelope. The plastic sleeve connecting the base cap and envelope would keep the two parts together if the cement fractured.

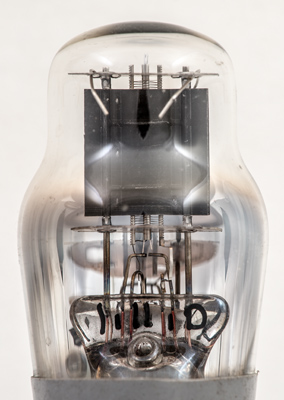

The electrode assembly is formed on a glass pinch and the anode plates form an oval cavity for the grid and cathode.The classic envelope is 38 mm in maximum diameter and excluding the IO base pins the valve is 87 mm long.References: Data-sheet, 1040 & 1043. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  m | h | a | nc | g1 | nc | h | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 6.3 | 0.3 | 250 | -8 | 9 | 7.7K | 2.6 |
|
