6J5G

Sensibly equivalent to:
CV1067 CV1932 L63 VR67

Extras ▼

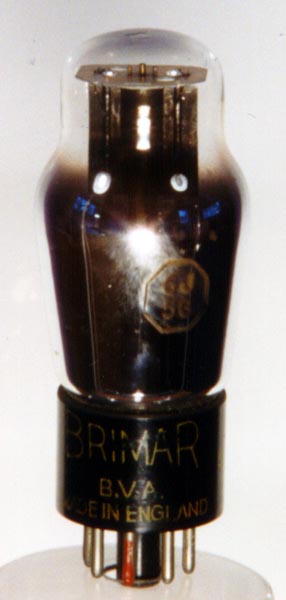

The 6J5G is a single triode is housed within a glass envelope. The electrode assembly is formed on a glass pinch in the traditional style. The anode plates are formed to leave an oval cavity for the grid and cathode.
We also have the later glass tubular version 6J5GT and the American metal version 6J5 in the museum.
The classic envelope is 36 mm in diameter and, excluding the IO base pins the is 85 mm tall.
References: Data-sheet, 1040 & 1043. Type 6J5G was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
nc
g1
nc
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-8
9
7.7K
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 27, 2013.
