12AU7

Sensibly equivalent to:
6067 B329 CV491 E2163 ECC82
See also:
Valves and their Habits - Pin Compatible Double Triodes

Extras ▼



The 12AU7 is a double triode with separate cathodes. An amplification factor of 17 is quoted. The 6C4 is half of the 12AU7.

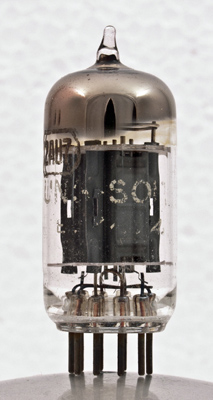

One of the anodes showing the stitch that holds the two halves together.
The thin glass tube envelope is 20 mm in diameter and the length excluding the B9A base pins, is 47 mm.
References: Datasheet, 3002 & 1040. Type 12AU7 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
