6N7

Sensibly equivalent to:
CV1957 VT-96
See also:
Quiescent Push-Pull

Extras ▼



The 6N7 is designed to operate in push-pull Class B2 with zero grid bias or quiescent push-pull. The anode to anode load is given as 8,000 Ohm. The 6N7 is capable of 10 W audio output, and a pair operating in parallel push-pull will produce 20 Watts. A single valve operating in Class A is effective as a driver for another 6N7 as the output stage. The attached PDF data sheet gives more application data than the data sheet on 6N7.

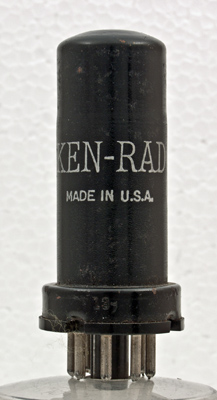

The Makers identification is the only other mark on the steel envelope.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins is 67 mm tall.
References: Datasheet, 3002 & 1040. Type 6N7 was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
g1(2)
g1(1)
a(1)
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.8
300
0
35.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 28, 2013.
