95

Sensibly equivalent to:
CV1095 VR95
See also:
The Famous EF50 of WWII - A datasheet for the 956 - Acorn Antiques - CV1095 short entry

Extras ▼



This exhibit is marked as Type 95 and also has the old UK stores code of 10E/95. It was also known as the VR95 and later the CV1095. Commercially it would be the 954 acorn pentode.

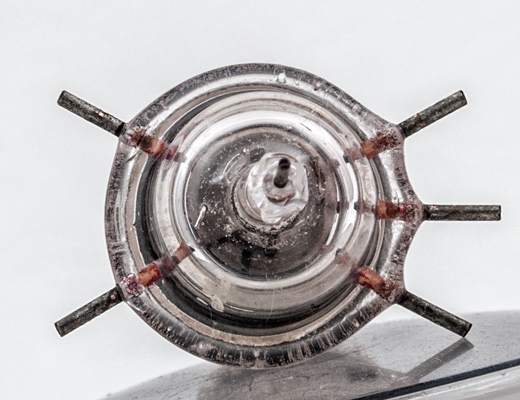

The five connections in a ring that fit into the special base that can be seen in the Acorn Antiques article.
The anode end. These is no evidence of this valve having been gettered.
The acorn envelope is 13 mm in diameter and, including the base pins, is 41 mm tall.
References: Datasheet. Type 95 was first introduced in 1935.



Pin Connections
1
2
3
4
5
tc
h
g2
g3
h
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
μ
6.3
0.15
250
100
-3.0
1.2
0.5
1.0M
11.0
1100
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 18, 2015.
