Y63

Sensibly equivalent to:
63ME 6H5 CV1103 NR69 VI103 Y64
See also:
Tuning Indicators - CV1103 short entry

Extras ▼

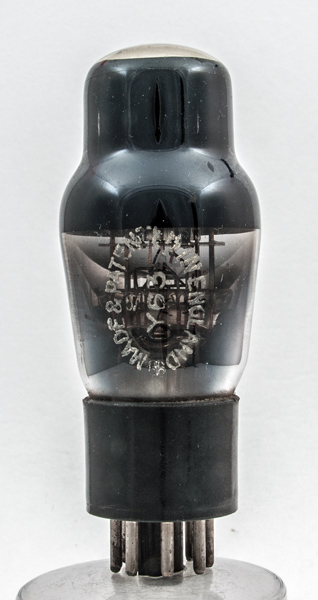

The Y63 is a second generation tuning indicator with a 6.3 Volt heater. This type of indicator was used in many radios. This exhibit carries identification information in a typical M-OV lozenge style but the paper label on the other side GEC Tuneray.
The datasheet gives that the 6G5 is electrically identical to the Y63 but has a UX6 base cap.

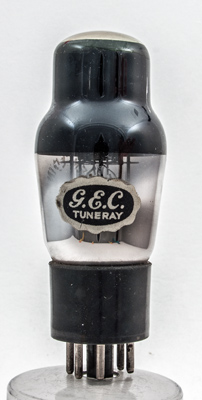

The paper label brands this M-OV product to the professional GEC range.

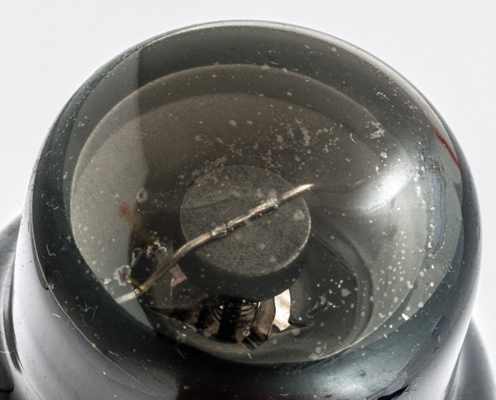

The display bowl.
The green display. The stronger the signal the greater the bright green area. This image courtesy of Mullard Magic.
The classic envelope is 36 mm in diameter and, excluding the IO base pins, is 87 mm tall.
References: Datasheet & 1040. Type Y63 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a
t
g1
-
h
k



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
mAa
6.3
0.3
200
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
