6SG7

Sensibly equivalent to:
CV1978 VT-211
See also:
Metal Striptease - 6SG7 box

Extras ▼

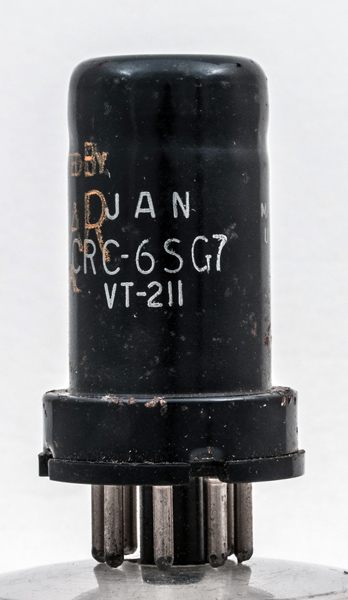

This exhibit is an RCA 6SG7 and is interesting in that the can is overprinted with the words Distributed by Brimar. The box shows that the manufacture was for use by the US Army and US Navy and is dated 1944.
The type 6SG7 was designed for wideband RF and IF amplification and has a relatively high gm value to ensure a good gain-bandwidth product. It was adopted by the American Government and coded VT-211 as is shown on the can.
The valve has dual cathode lead-outs to minimise the risk of self-oscillation due to parasitic coupling between input and output circuits caused by common impedance in series with the cathode.
The 6SG7 and 6SH7 are essentially similar except for grid pitch. Type 6SH7 is a 'straight' pentode while type 6SG7 has a variable-pitch grid, giving it a vari-mu characteristic, and would be suitable for the IF strip of radar receivers incorporating 'swept gain'.

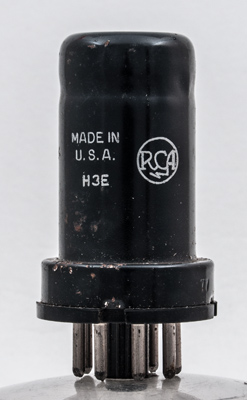

The RCA logo and Made in USA.

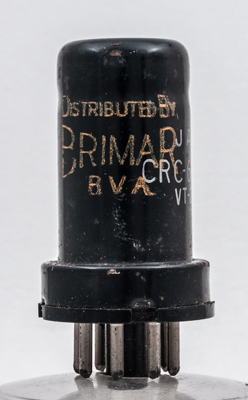

The Brimar overprint.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 51 mm tall.
References: Datasheet, 1040 & 1043. Type 6SG7 was first introduced in 1940.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
k
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-2.5
9.2
3.4
1M
4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 21, 2016.
