PCF802

Sensibly equivalent to:
9JW8
See also:
Valves and their Habits - New TV Valves and Circuits

Extras ▼



The PCF802 was designed as the first stages in television line frequency generation prior to the line output stage. The pentode is described by Mullard as the oscillator while the triode is for service as a reactance valve. This suggests the triode acting as a frequency controlling stage.

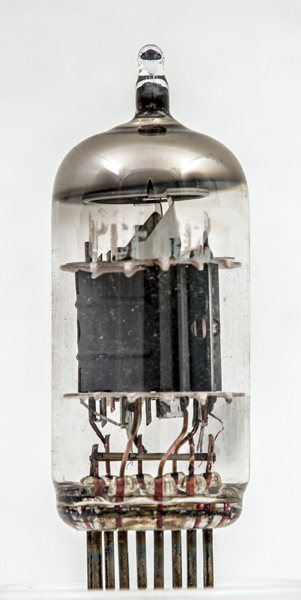

This unbranded valve is included as the envelope is clear making the inner detail accessible.

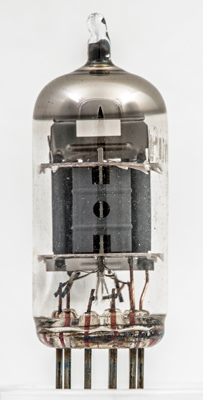

The triode with internal screen behind.

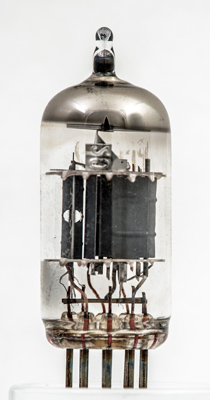

The triode on the left with the much larger pentode on the right.

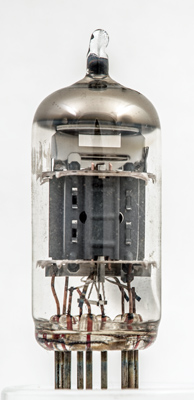

The end wall of the pentode showing the suppressor grid support.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
References: Data-sheet, 3002 & 1040. Type PCF802 was first introduced in 1962.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
kp,s,g3
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
9.0
0.3
100
100
-1
6.0
1.7
0.4M
5.5



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
200
-2
3.5
2M
3.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 20, 2021.
