6BQ7A

Sensibly equivalent to:
CV5365
See also:
Valves for Bands III, IV & V - Nuvistor Valves - RCA 6BQ7A Box

Extras ▼



The 6BQ7A is an all glass miniature VHF double triode and is internally screened.
The 6BQ7A would be used for cascode RF amplification, or possibly frequency multiplication. In the latter case the valve is operated as a non-linear (Class C) amplifier. This causes harmonics of the signal frequency to appear in the anode current. The anode tuned circuit is then chosen to resonate at one of the harmonics, usually the second or third.

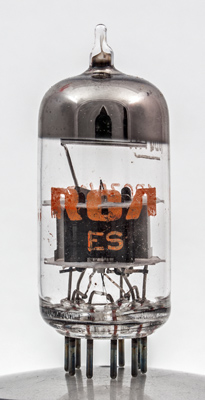

The RCA Logo and triode anode face view.

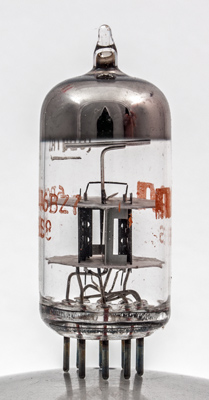

The twin triodes seen end on with the electrostatic screen between them.

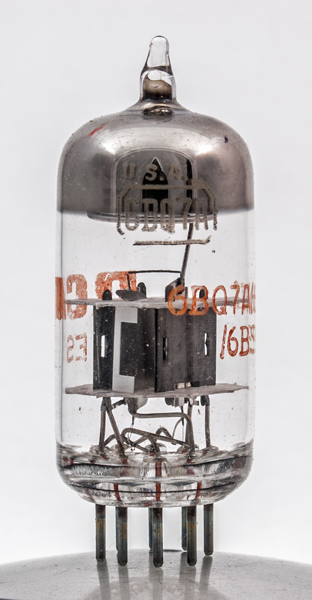

The thin glass tube envelope is 21 mm in diameter and excluding the B9A base pins the valve is 47 mm long.
References: Data-sheet & 1040. Type 6BQ7A was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
gm
6.3
0.4
150
9
6.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December01, 2014.
