BVA276

Sensibly equivalent to:
ECH35
See also:
BVA Valves

Extras ▼

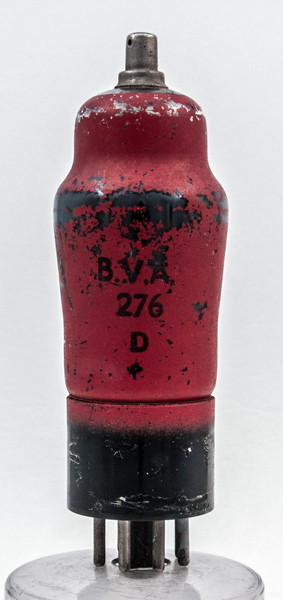

During WWII two civilian radio receivers were made, one battery and the other mains. The valves they contained were generic and marked with BVA numbers. The BVA276 was the Mullard ECH35 and is a typical triode hexode frequency changer or mixer for broadcast applications.
The classic envelope is 34 mm in diameter and, excluding the IO base pins, is 94 mm tall.
References: Data-sheet, 1040 & 1043. Type BVA276 was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g1(t),g3
a(t)
h
k
g1



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2.0
3.0
3.0
1.3M
0.65



Absolute Maximum Operating Conditions
Triode
Va
mAa
100
3.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
