354V

Sensibly equivalent to:
41MTL AC/HL AR17 CV399 CV1037 D4 HL4 NR31 NR52 VR37
See also:
CV1173 short entry

Extras ▼



The Mullard 354V is an indirectly heated triode and has an external metalisation to act as screening.

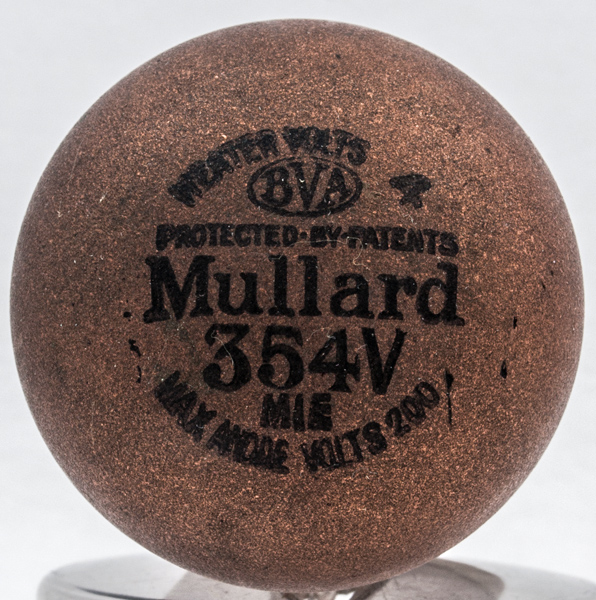

The metalised balloon envelope.

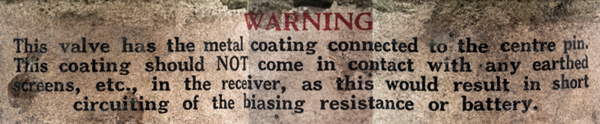

The paper label warns about not earthing the metal paint as it is connected to the cathode.

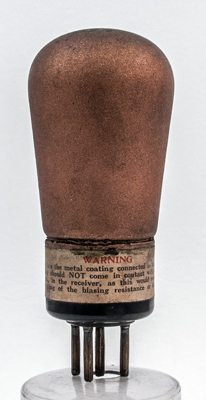

The balloon envelope is 46 mm in diameter and, excluding the B5 base pins, is 92 mm tall.
References: Datasheet, 4023, 4024, 4048 & 1043. Type 354V was first introduced in 1929.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
0.65
250
-4.5
6.5
11,500
3.5
PDF scanned from an original document held by the museum
