5718

Sensibly equivalent to:
CV3930 EC71

Extras ▼



The 5718 is a special quality miniature triode for use as an oscillator at UHf frequencies up to 500 MHz.

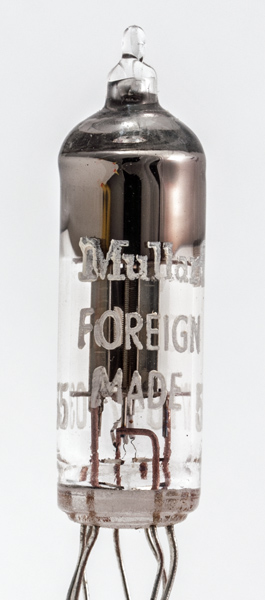

The valve is badged as Mullard but not made by them. The close wound triode can be seen in the centre.

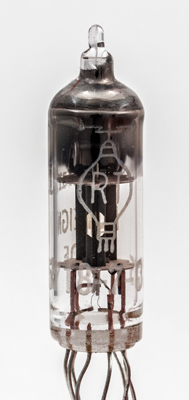

The RT logo of the original manufacturer.
The thin glass tube envelope is 10 mm in diameter, and excluding the B8D/F base wires is 34 mm tall.
Reference: Datasheet. Type 5718 was first introduced in 1957.



Pin Connections
B8D & B8D/F
1
2
3
4
5
6
7
8
g1
-
h
-
k
h
-
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.15
100
-1.3
8.5
4,700
5.8
27
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 26, 2014.
