QS150/15

Sensibly equivalent^¶ to:

150B3 CV287 GTR150M/S

See also:

CV287 Priming Anode

Extras ▼

GEC Valves from Susan McFadyn Other QS150/15 exhibits

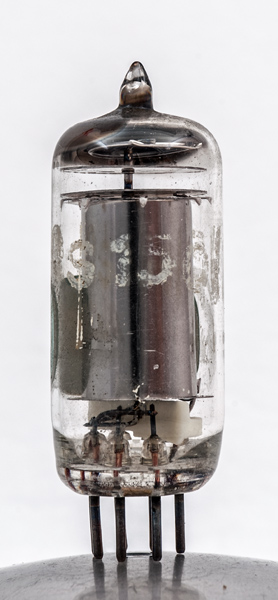

The QS150/15 is a miniature voltage stabiliser.

The striking voltage is 170 and for burning currents of 2 - 10 mA the regulation is 5 Volts. The electrode at pin 4 is the priming anode and it should draw no more than 500 μA.

The lettering on the glass is of poor quality, quite unlike our other GEC QS150/15.

The GEC brand label. The three cathode pin leads pass through a ceramic insulator to the outer cylinder.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 45 mm tall.

Reference: Data-sheet. Type QS150/15 was first introduced in 1954. See also 1954 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	k	k	k	pa	a	a	a

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	150	2-10

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated December02, 2019.
