ECC82

Sensibly equivalent to:
12AU7 B329 CV491 E2163 E812CC
See also:
Valves and their Habits - Pin Compatible Double Triodes - Push-Pull EL91 Amplifier - Experimental 12AX7 - 12AU7 Audio Amplifier - A 600 mW audio Amplifier

Extras ▼



The ECC82 is a low μ general purpose double triode audio. The performance is good and this is often used in audio applications where high gain is not required or to drive a larger output valve.
The 6C4 has almost the same rating as half of an ECC82.

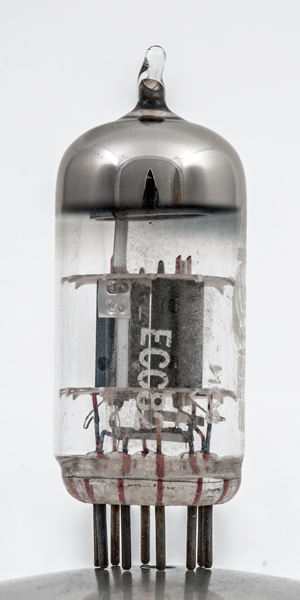

The logo on the glass is different to our other Pinnacle ECC82.
The twin triode sections. The central line is the support for the getter holder and not an electrostatic screen.
The thin glass tube envelope is 20 mm in diameter and the length excluding the B9A base pins, is 49 mm.
References: Datasheet & 1040. Type ECC82 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 24, 2018.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(2) pin:2.g1(2) pin:3.k(2) pin:4.h pin:5.h pin:6.a(1) pin:7.g1(1) pin:8.k(1) pin:9.hct
