6SN7GTSensibly equivalent¶ to:
|
|
|
The 6SN7GT double triode valve is electrically equal to a pair of the 6J5 medium μ triodes in a single envelope.

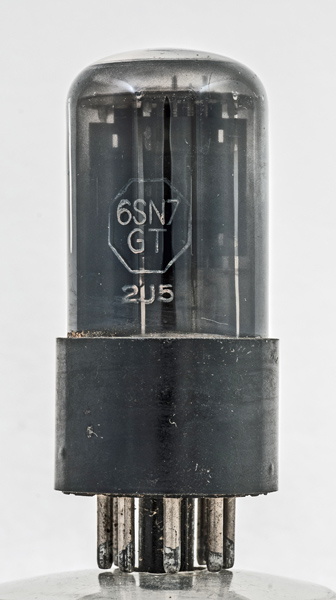

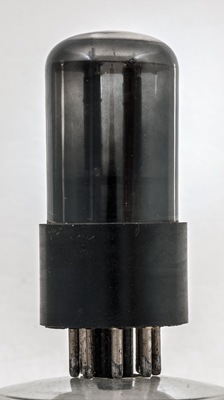

The construction uses a glass pinch and the two separate electrode structures are visible through the envelope.The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 63 mm tall.References: Data-sheet, 1040 & 1043. Type 6SN7GT was first introduced in 1941. See also 1941 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  g1(2) | a(2) | k(2) | g1(1) | a(1) | k(1) | h | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 6.3 | 0.6 | 250 | -8 | 9 | 7.7k | 1.3 |
|
