6SL7GT

Sensibly equivalent to:
CV569 CV1985 ECC35 VT-229

Extras ▼



The 6SL7GT is a medium impedance double triode with high gain and superseded the 6SC7. It featured separate cathodes and was designed for use as AF voltage amplifiers, phase splitters and where required as a cascade amplifier of very high gain.
It was also specified for US Government projects with a procurement code of VT-229.

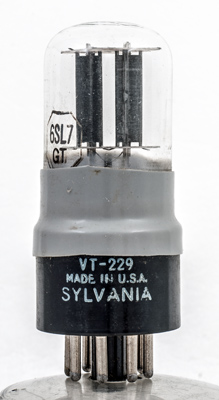

The Sylvania name and VT-229.

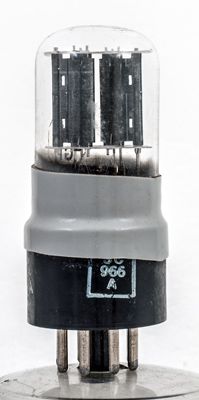

The plastic shrink fit plastic band is probably original.

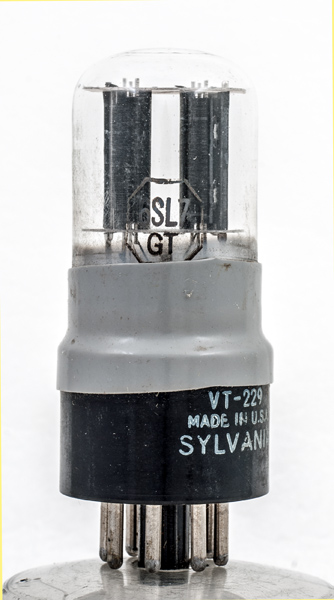

The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 67 mm tall.
References: Datasheet, 1043 & 1040. Type 6SL7GT was first introduced in 1942.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.3
250
-2
2.3
44,000
1.6
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 15, 2019.
