NR51

Sensibly equivalent to:
CV1172 VMP4G VP4A
See also:
GEC NR51 Box

Extras ▼

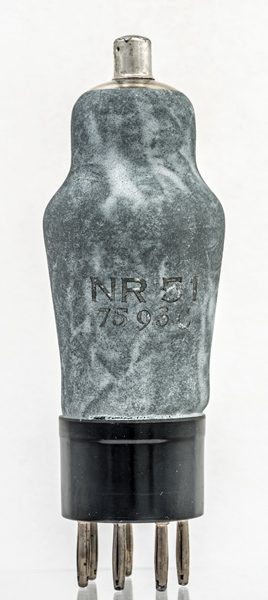

The NR51 is Admiralty pattern 1166 and is a screened vari-μ HF pentode. This exhibit was made by M-OV but the basic design is that of the Mullard VP4A. When the unified purchase of UK Government valves was introduced in 1941 the valve was renamed the CV1172.

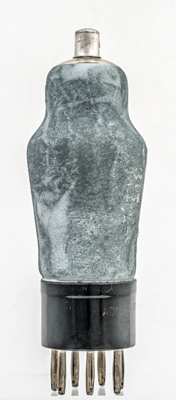

The reverse carries no additional identification.
The classic envelope is 44 mm in diameter and, excluding the B7 base pins, is 115 mm tall.
Reference: Data-sheet.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
h
h
k
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
1.2
200
100
-1.5
4.25
1.8
1.4M
2.5
