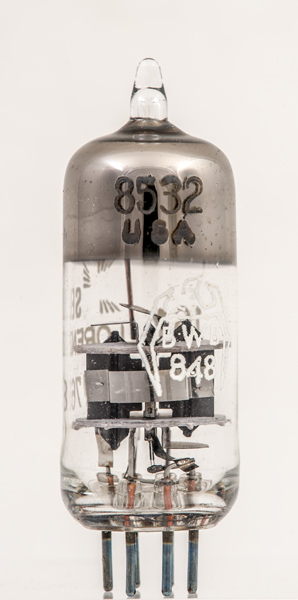

The CV1763 is a miniature grounded grid triode with a 2.5 Watt anode dissipation for operation into the UHF at 550 MHz. The prototype was the 6J4.

The 8532 is a premium version made with a frame grid.

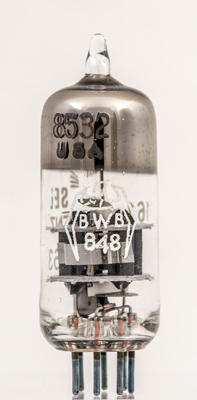

The BWB logo.

The Lorenz name and the CV1763 designation.

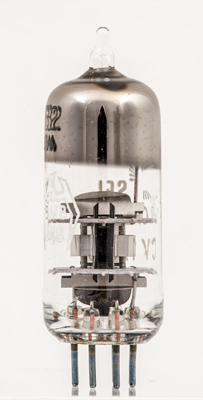

The frame grid. As the thin wire is wound at 50% of the breaking strain to eliminate any kinks, the supports need to be kept apart and her there are welded tapes top and bottom of the support.

A closer view of the frame grid.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 48 mm tall.

Reference: Data-sheet. Type 8532 was first introduced in 1964. See also 1964 adverts.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
