ECF80

Sensibly equivalent to:
6BL8 6C16 CV5215
See also:
Valves and their Habits - Valves for Bands III, IV & V - ECF80 and ECF82

Extras ▼

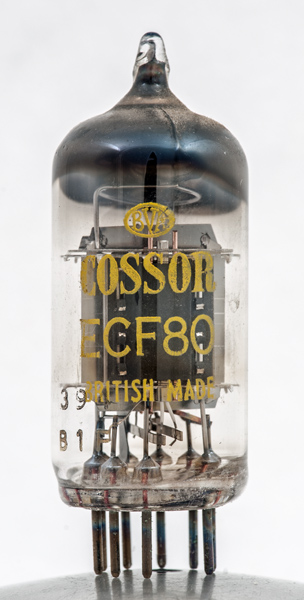

The ECF80 was originally a British made product as in ECF80 but this later example was made abroad when it became cheaper to manufacture overseas.The ECF80 was designed for operation up to 220 MHz. As 1950s television receivers tended to use the PCFnn 300 mA valves, the production of this valve with a 6.3 Volt heater suggests that it was aimed at the professional VHF communications market.

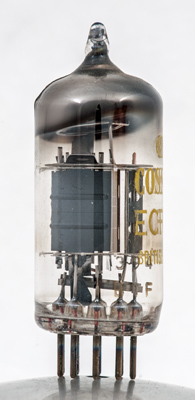

The triode on the right with the screen between it and the pentode. The bars above the base connect the two heaters in parallel. The heater wire can be seen to be coiled, insulated and bent into a hairpin for passing into the cathode.

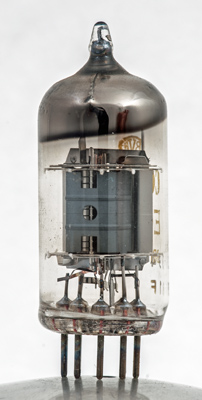

The holes in the pentode anode reveal the wire grids.

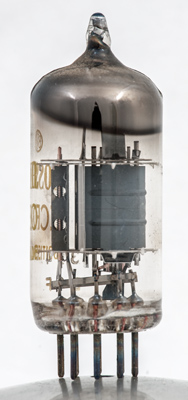

A closer view of the triode.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 53 mm tall.
References: Data-sheet & 1040 Type ECF80 was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,s,g3
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.43
250
180
-5.8
5.7
1.4
1.5M
5.5



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
100
-2
14
4K
5
PDF scanned from an original document held by the museum
Updated July 14, 2020.
shape:thin.glass.tube construction:all.glass type:triode.pentode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(t) pin:2.g1 pin:3.g2 pin:4.h pin:5.h pin:6.a pin:7.k.s.g3 pin:8.k(t) pin:9.g1(t)
