ECC82

Sensibly equivalent to:
12AU7 B329 CV491 E2163 E812CC
See also:
Valves and their Habits - Pin Compatible Double Triodes - Double Triodes in Audio Amplifiers Advert - Push-Pull EL91 Amplifier - Experimental 12AX7 - 12AU7 Audio Amplifier - A 600 mW audio Amplifier

Extras ▼

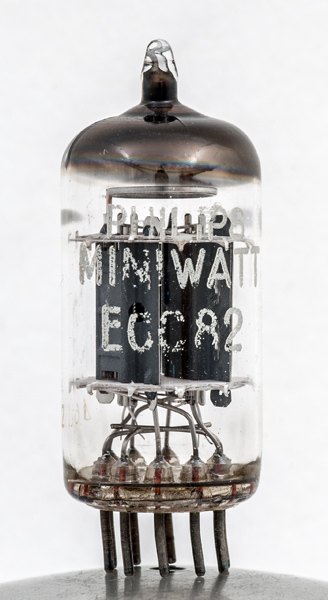

Designed as general purpose triodes, two independent valves exist in the ECC82 envelope. An amplification factor of 17 is quoted, and the ECC82 is virtually a pair of EC90 triodes in a single envelope but not designed for RF use.
A special quality version was also produced, the E82CC. Designed for differential amplifiers in industrial equipment, the anti microphonic and matched pair version E182CC was also made.

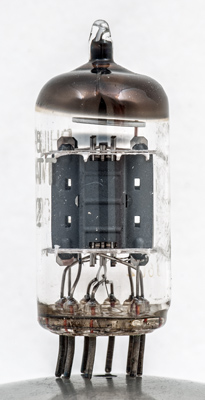

The anodes are stitched together and this one is ribbed for stability.
The twin sections.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 47 mm tall.
References: Data-sheet & 1040. Type ECC82 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 26, 2020.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a pin:2.g1 pin:3.k pin:4.h pin:5.h pin:6.a pin:7.g1 pin:8.k pin:9.hct
