The CV4062 pentode is clearly designated as an audio power valve. In class AB1 a pair of valves in push pull will deliver 13.3 Watts. The input needs 30 Volts peak to peak and the required anode load is 7500 Ohms.
Also the data-sheet specifically mentions suitability as a series pass valve in stabilised power supplies.
In Class A, triode connected, the valve will generate 2.6W at 1.4% distortion.
When fitted with flying leads for direct soldering into a circuit the Type designation becomes CV4065.

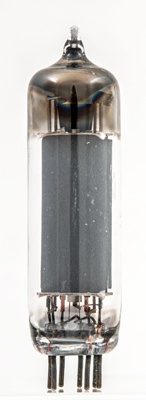

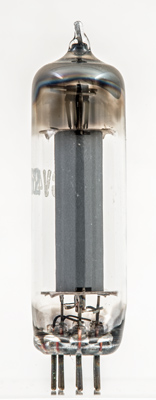

Side view.

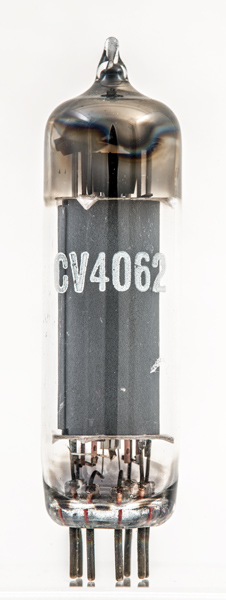

Face view: double mica discs for vibration resistance and copper supports for control and screen grid. A heat radiating fin is connected to the top of the control grid supports.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 62 mm tall.
References: Data-sheet & 1040. Type CV4062 was first introduced in 1959.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
k
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
Pout
D
6.3
0.635
250
165
40
12
2.3W
4.5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2021.
