X61M

Sensibly equivalent to:
CV281 CV1944 ECH35 OM10 X147 X65
See also:
The 'Magic Three' Valves - Marconi X61M/B Box - Osram X61M Advert

Extras ▼



The X61M triode hexode valve was purpose designed as a radio frequency changer.
The input signal would be coupled to the frequency changer via the top cap connection to grid 1. The 6K8 is an equivalent and the data for it shows the top cap connected to g3. In both cases the input signal is connected to the top cap irrespective of the internal construction. It also suggests that this valve has separate triode and hexode sections, whereas the 6K8 employs a clever arrangement of grids.

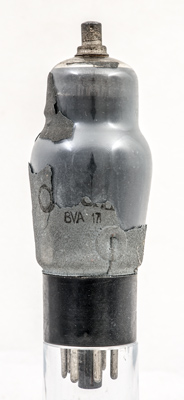

The remains of the Osram name. The circular pad held the wire in place whilst the coating was applied. The wire connects to pin 1.

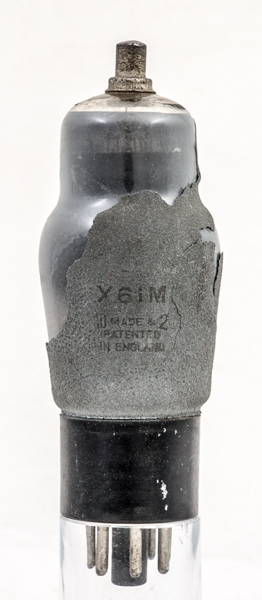

The classic envelope is 45 mm in diameter and excluding the IO base pins, is 123 mm tall.
References: 1043 & 1040. Type X61M was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g1(t),g3
a(t)
h
k
g1



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
3.0
6
-
0.62



Absolute Maximum Operating Conditions
Triode
Va
mAa
100
3.8
