CV4079

Sensibly equivalent to:
A2293 VX3208
See also:
GEC A2293 Advert - Mufax Chart Recorder Maintenance Manual - Small Power Valves

Extras ▼

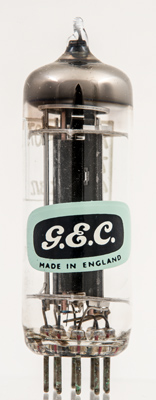

The CV4079 has a commercial equivalent in the GEC A2293 and the prototype was the VX3208. When fitted with flying leads it is called the CV4038.
It is a low impedance triode with an anode dissipation of 15 Watts designed as a series pass element in stabilised power supplies.

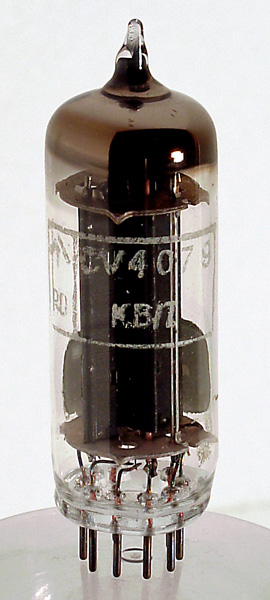

The KB/Z identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Z identifies the maker as MO Valve Company, Hammersmith.

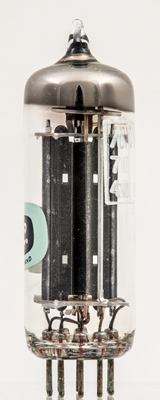

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 62 mm tall.
Reference: Data-sheet. Type CV4079 was first introduced in 1957. See also 1957 adverts.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.95
300
-
120
375
12.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
