7AN7

Sensibly equivalent to:
30L1 B319 PCC84
See also:
Valves and their Habits - Valves for Bands III, IV & V - PCC84/7AN7

Extras ▼

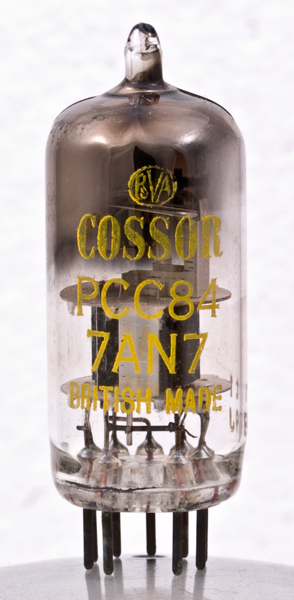

The 7AN7 is the Cossor name for the PCC84 input cascode TV RF stage in VHF Band III television receivers.

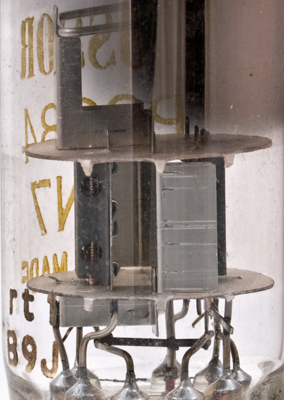

A face-on view of one box shaped anode.

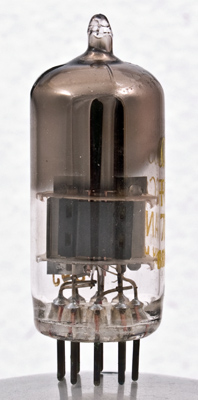

The side view. The grid can be seen wound on a copper support. The screen is on the right.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 48 mm tall.
References: Data-sheet & 1040 Type 7AN7 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(2)
g1(2),s
A(2)
h
h
g1(1)
k(1-in)
k(1-out)
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
7.0
0.3
90
-1.5
12
4,000
6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 23, 2013.
