VR54

Sensibly equivalent to:
1638 ARDD5 CV1054 EB34 OM3

Extras ▼

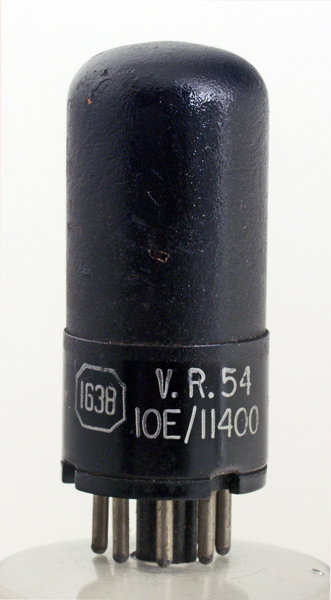

The VR54 is a signal double diode. Our exhibit is also marked 1638 but we cannot find data on the 1638 and the number does not fit the American naming convention. The VR54 is equivalent to the commercial EB34.
The glass envelope has been screened with an external copper metallisation that has then be painted black.
The wide glass tube envelope is 28 mm in diameter, and excluding the IO base pins, is 63 mm tall.
References: Data-sheet, 4001, 4039, 1040, & 1043. Type VR54 was first introduced in 1941. See also 1941 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
nc
h
k(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.2
200
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 07, 2022.
