PCC84

Sensibly equivalent to:
30L1 7AN7 B319 CV5191
See also:
Valves for Bands III, IV & V - PCC84/7AN7

Extras ▼

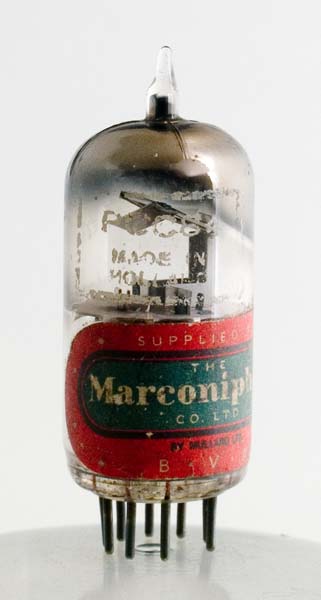

The PCC84 double triode shows how valves developed to meet the needs of VHF television transmission. This exhibit was made by M-OV and badged Marconiphone and is very similar to the PCC84 from Mazda and the PCC84 from Mullard.
The PCC84 and PCF80 both featured in set-top converters for the new ITV television Band III channels that commenced broadcasting in 1955. The transmissions were on around 170 MHz and much higher in frequency than the BBC Band I signals at around 50 MHz.
The PCC84 was specifically designed for cascode operation. The normal configuration was for triode one to be operated as a grounded cathode stage directly coupled to triode two. Triode two was connected as a grounded grid stage.
The triode has a smaller inter electrode capacitance than a pentode at VHF and could be made physically small. The photograph shows that within the envelope the electrodes are a small percentage of the total volume. The two triodes would be used for initial signal amplification at up to 220 MHz. The low anode voltage and relatively high current being features to ensure low noise operation. The anode dissipation was two Watts for one triode or 2.5 Watts for both triodes operating. See also PCF80 for the corresponding oscillator and mixer.

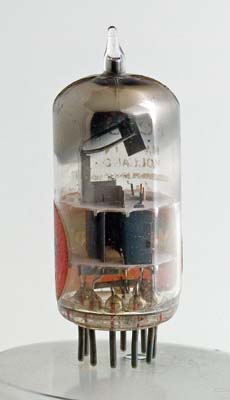

The two independent electrode systems can be seen. The triodes are the same size, it is the screen in the middle that makes the right side larger.
The thin glass tube envelope is 18 mm in diameter and excluding the B9A base pins has a length of 45 mm.
References: Datasheet & 1040 Type PCC84 was first introduced in 1953.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(2)
g1(2),s
a(2)
h
h
g1(1)
k1-in
k1-out
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
7.0
0.3
90
-1.5
12
4000
6
Thanks to Frank Philipse for supplying the above PDF datasheet.
