X65

Sensibly equivalent to:
CV1193 CV3826 ECH35 NR82 OM10 VR99 X147 X61M X61M
See also:
X65 Instruction Sheet

Extras ▼



The X65 is a triode hexode frequency changer for receiver applications.
The triode was designed for local oscillator use and an injection voltage of 10 V peak to peak was produced. The hexode mixer took the signal into the top cap grid, thus maintaining the greatest separation between grid and anode circuits.
The Marconi brand label, all Marconi valves were produced by M-OV.

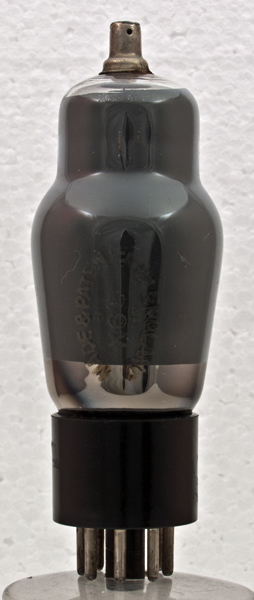

The classic envelope is 38 mm in diameter and, excluding the IO base pins, is 100 mm tall.
References: Data-sheet & 1040. Type X65 was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g1(t),g3
a(t)
h
k
g1



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
ra
gm
6.3
0.3
250
100
-3
1.75
2.5M
0.225



Absolute Maximum Operating Conditions
Triode
Va
mAa
100
4.75
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2014.
