7475

Sensibly equivalent to:
AW2 CV188 CV1070 GD100A MV43 QS92/10 VS70

Extras ▼



The 7475 is a neon filled voltage stabiliser tube with good regulation. The striking voltage is 140 volts and it will hold the 100 Volt stabilised voltage for tube currents of 1.0 to 8.0 mA to within 2.0 Volts.

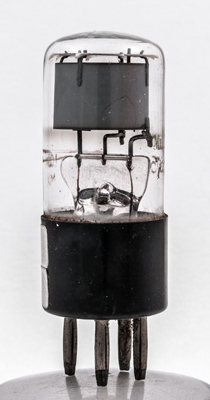

The anode cylinder with the cathode cylinder in the centre. The glow is contained within the gap between the two cylinders.

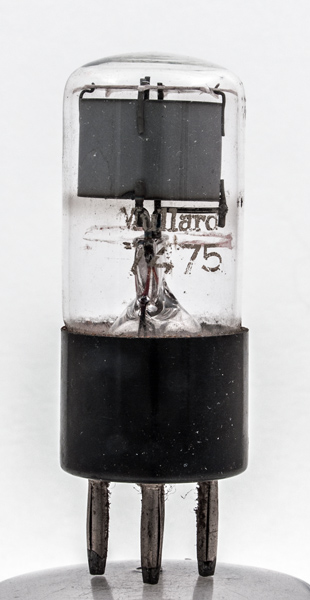

The wide glass tube envelope is 26 mm in diameter, and excluding the B4 base pins is 61 mm tall.
Reference: Data-sheet & 1040.



Pin Connections
B4
1
2
3
4
a
k
nc
nc



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
100
1.0-8.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
