Sensibly equivalent¶ to:
The EF39 was described by Mullard as a variable-mu RF pentode, with sliding screen characteristics, for use as a controlled RF or IF amplifier. The EF9 is electrically identical to the EF39 but is on a Ct8 base. The frequency range of operation would be up to 30 MHz.

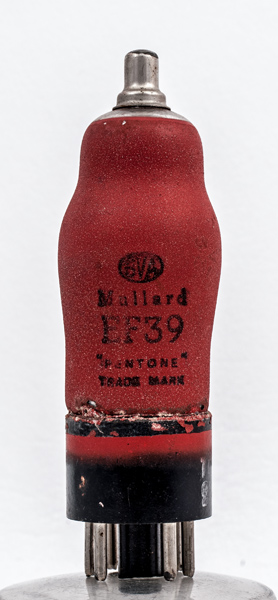

The envelope carries the Pentone trade mark.
The Cossor OM6 is directly equal.

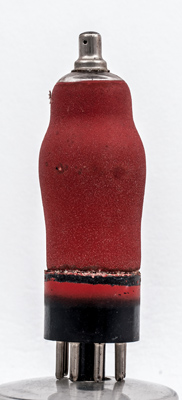

The reverse is plain red coloured zinc paint.
The classic envelope is 30 mm in diameter and excluding the IO base pins it is 85 mm long.
References: Datasheet, 1040 & 1043. Type EF39 was first introduced in 1939.
Absolute Maximum Operating Conditions¶
Updated January 03, 2019. shape:classic construction:pinch type:pentode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.g2 pin:5.g3 pin:6.- pin:7.h pin:8.k pin:tc.g1
