30PL13

Sensibly equivalent to:
16GK8 PCL800
See also:
Valves and their Habits - 110° TV CRT's

Extras ▼

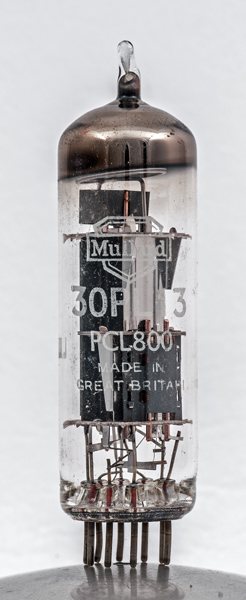

The 30PL13 triode beam tetrode was designed specifically for service in a frame output stage of a television receiver. Here we have a Mullard made valve that places the 30PL13 above the Mullard code of PCL800.
The requirements are low power and low frequency service. As with nearly all later television valves the heater is designed for 300 mA and operation as part of a chain across the mains supply.
The small triode with flat cathode and copper supports for the control grid.
The relative size of the two units. The triode is screened from the pentode and the screen partly wraps around the pentode anode.
The pentode anode.

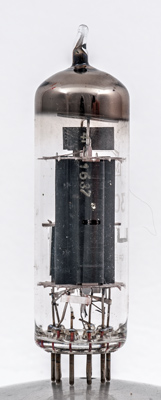

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Datasheet & 1040. Type 30PL13 was first introduced in 1959.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k,g3,s
g1
h
h
a
g2
k(t)
a(t)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
16
0.3
170
170
-13.5
45
9
7.5



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
200
-7.7
10
5300
3.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 14, 2017.
shape:thin.glass.tube construction:all.glass type:triode.beam.tetrode age:1950.1960 base:b9a heater:300ma pins:9 pin:1.g1(t) pin:2.k.g3.s pin:3.g1 pin:4.h pin:5.h pin:6.a pin:7.g2 pin:8.k(t) pin:9.a(t)
