Sensibly equivalent to:
5B/250A ATS25A ATS25 CV124 CV1060 CV1364 CV1374 CV1572 QV05-25 RK39 VT-100 VT-100A VT60A VT60
See also:
Beam Tetrodes and the 807 - The Williamson Amplifier - CV1060 short entry - An 807 at Atlas Cove

Extras ▼

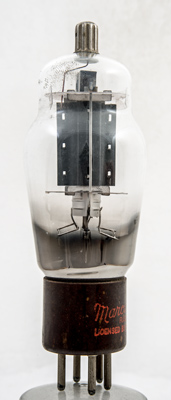

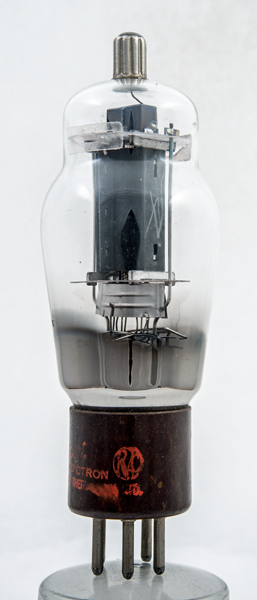

The classic 807 beam tetrode: this exhibit was made in Canada by RVC.
The parameters given are for single ended use. When used in a class AB1 as a push pull pair with 600 Volts on the anode an output power of 65 Watts was normal.

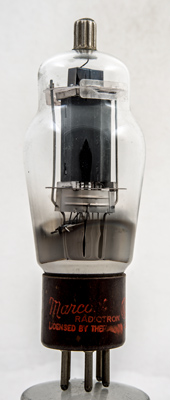

The base cap carries the Marconi name as well as the RVC logo. The insulators are ceramic and the anode is blackened for efficient heat radiation.
The elliptical lower screen is an 807 characteristic.
The classic envelope is 51 mm in diameter, and excluding the UX5 base pins is 129 mm tall.
References: Data-sheet & 1040. Type 807 was first introduced in 1938.



Pin Connections
UX5
1
2
3
4
5
tc
h
g2
g1
k
h
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
6.3
0.9
300
250
-14
83
8
20k
6.5
6.7W



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.9
600
250
-45
100
7
3.5
0.2W
25W
40W
60
125
